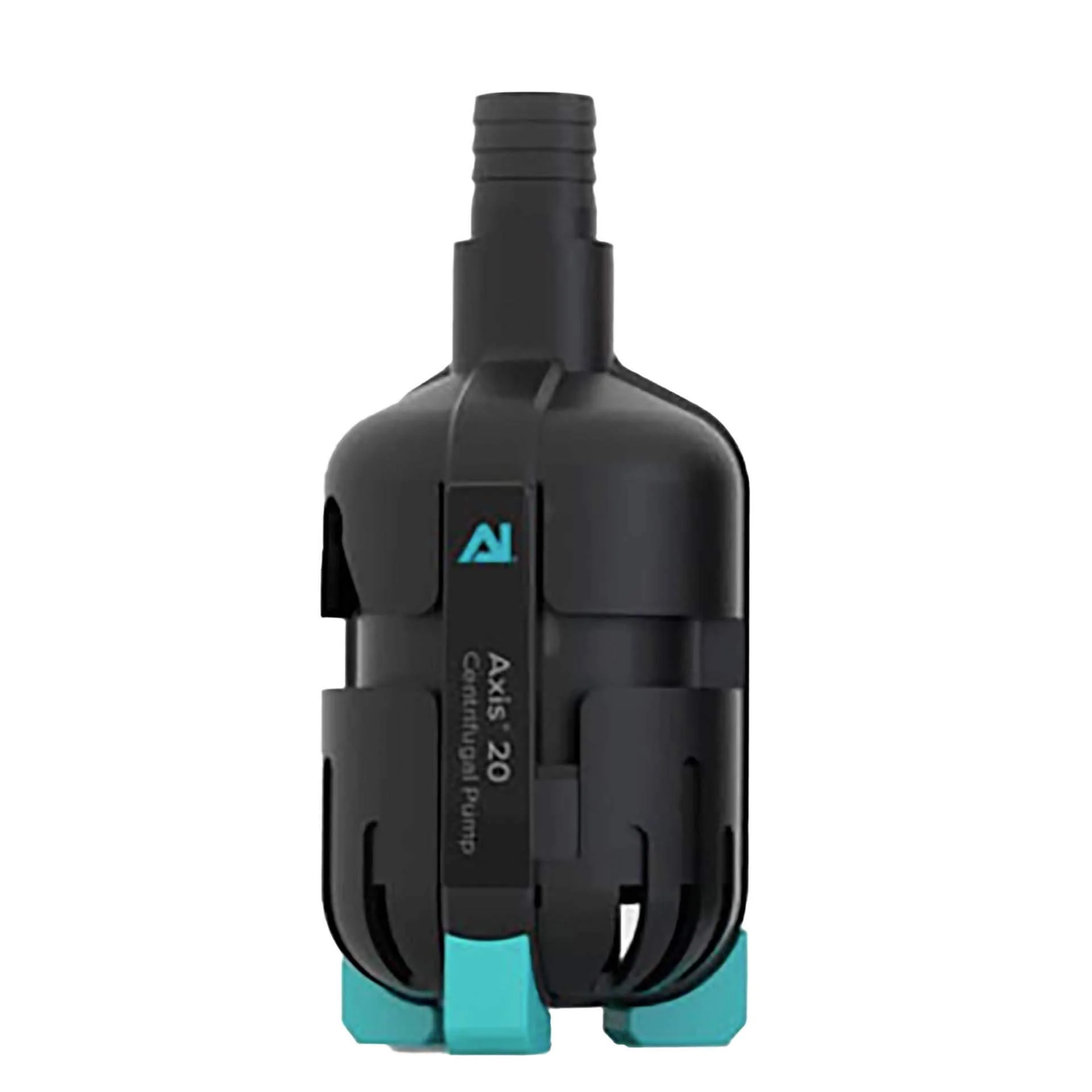

Aqua Illumination Axis 20 Centrifugal Pump - 700lph
Description:
Schedule
- Create a custom program with changing flow over time.
Feed
- Temporarily reduces flow to prevent food from being cycled into the overflow.
Calibrate
- Calibrate your pump to your aquarium. Set min and max flow levels.
Big Pump Features
Axis pumps offer full control, wireless smart device programming, DC motor quiet operation, and output calibration. Features that have traditionally been reserved for considerably larger and more expensive pumps. These features allow for:
- Coordinate Feed/Maintenance Modes- Turn all of your AI pumps on or off with a control button on a single pump.
- Prevent back-siphon- With calibration set, instead of powering off, a pump will continue to run without producing flow, preventing siphoning, which could result in air bubbles when the pump resumes its scheduled operation!
With Axis you get exactly what you need, starting with Axis 20 which is perfect for tanks 15 gallons or less.
Simple Built-in Control
All AI devices include smart control standard. Choose from the myAI or Mobius app on any iOS or Android device to easily set up or program your AI equipment. Add Neptune Fusion control via Apex with Apex and MXM module.

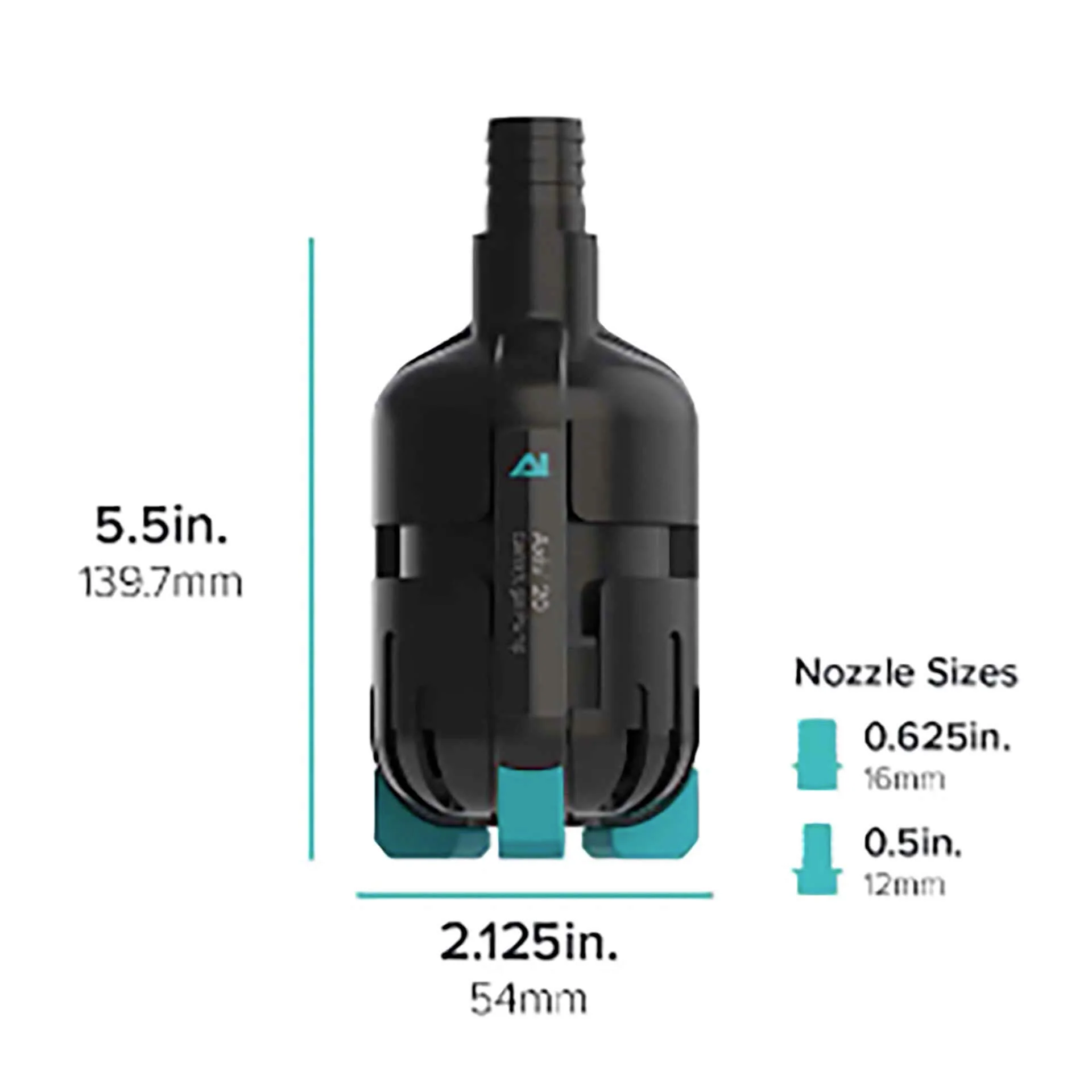

| Dimensions | |
|---|---|
| Width | 2.125 in. (54 mm) |
| Height | 5.5 in. (139.7 mm) |
| Specifications | |
|---|---|
| Max Head | ≈5 ft. (≈1.5 m) |
| Flow Rate | ≈185 gph (≈700 lph) |
| Recommended Tank Size | Up to ≈15 gallons |
| Power Consumption | Variable, 12W max |
| Input | 100–240VAC, 50-60Hz, 1A |
| What’s in the Box |
|---|
| AI Axis™ 20 Pump with Integrated Driver |
| Power Adapter with Universal Plug Adapter Set |
| Quick Start Guide |
Specifications
- Item no: HYAX20
- Barcode:
- Weight:
- Dimensions: 54 mm (w), 139.7 mm (H)
- Warranty:
- Flow rate: 700l/h
- Tank recommendation: 57l
- Energy consumption: 12W
