Aqua Medic T controller twin 2.0
Description:
This controller will automate the SCHEGO PTC-Heater Titanium Tube Heaters Click here

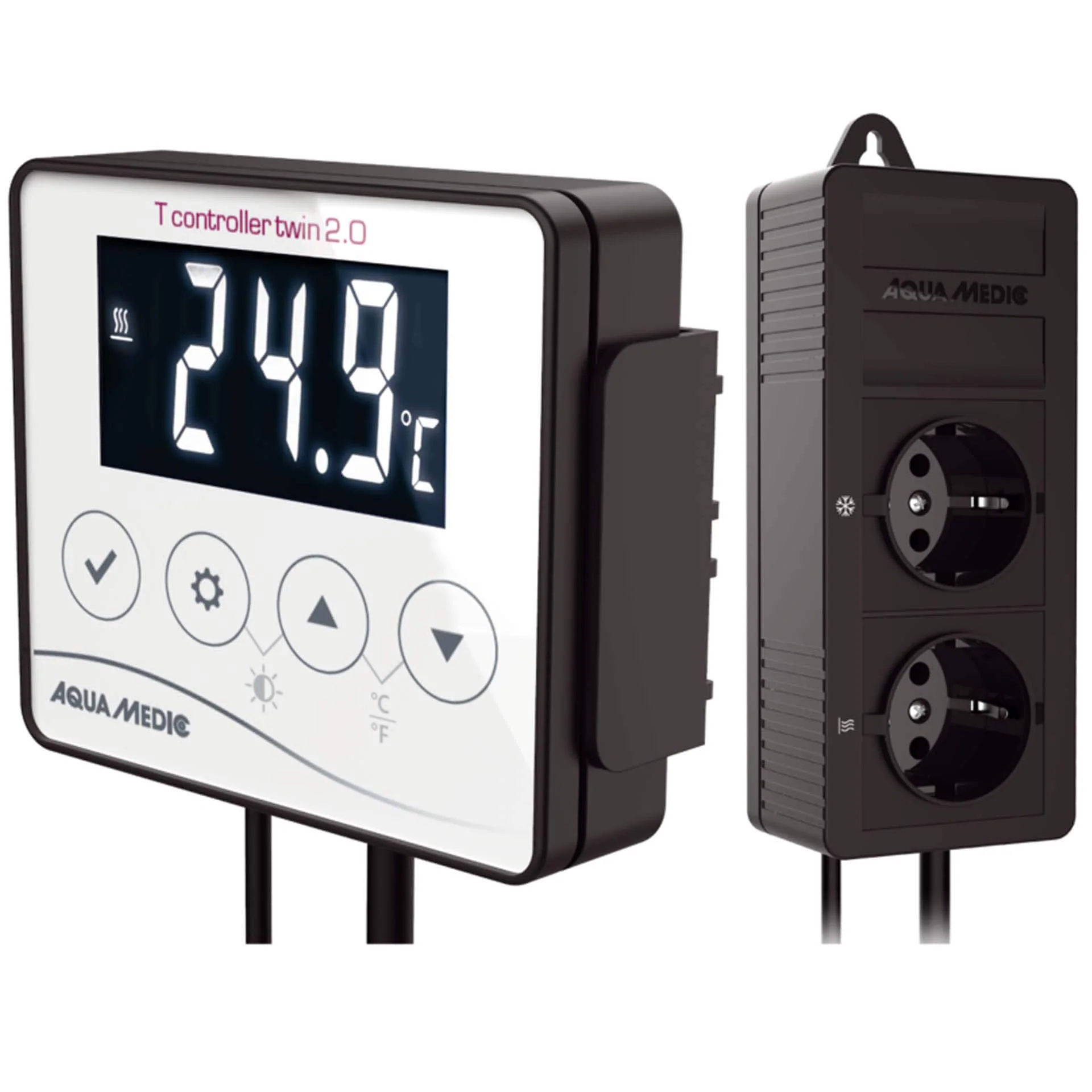

The temperature controller T controller twin 2.0 is used for controlling both heating systems and cooling units.
The measuring and switching accuracy is 0.1 °C. The control range varies from 16 - 40 °C, and the set value is in 0.1 °C increments.
The maximum load for heating systems is 1,200 watts and 460 watts for cooling units.
Because of the integrated double socket it is possible to connect a heating system and cooling unit simultaneously. The T controller twin 2.0 is supplied with a waterproof temperature probe.
The LCD display provides instant information on the current temperature. The minimum and maximum values can be easily adjusted. Sensor cable: 1,90 m
(IP 65)
Specifications
- Item No: AM20525
- Barcode: 807846210385
- Weight: 1.1kg
- Warranty: 2 Years
- Display: 0.1 Degree Celsius
- Suitability: Marine and Freshwater
- Measurements Range: 0 up to 50 °C
- Resolution: 0.1 °C
- Loading Capacity of contact: 1,200 Watts at 220 V AC
- Adjustment Range: 16 – 40 °C
- Adjustment Accuracy: +/- 0.1 °C
- Power requirements: 220 - 240 V, 50 Hz
- Humidity: < 85%
- Cable length sensor: app. 2 m
Manual
For Manual click here
